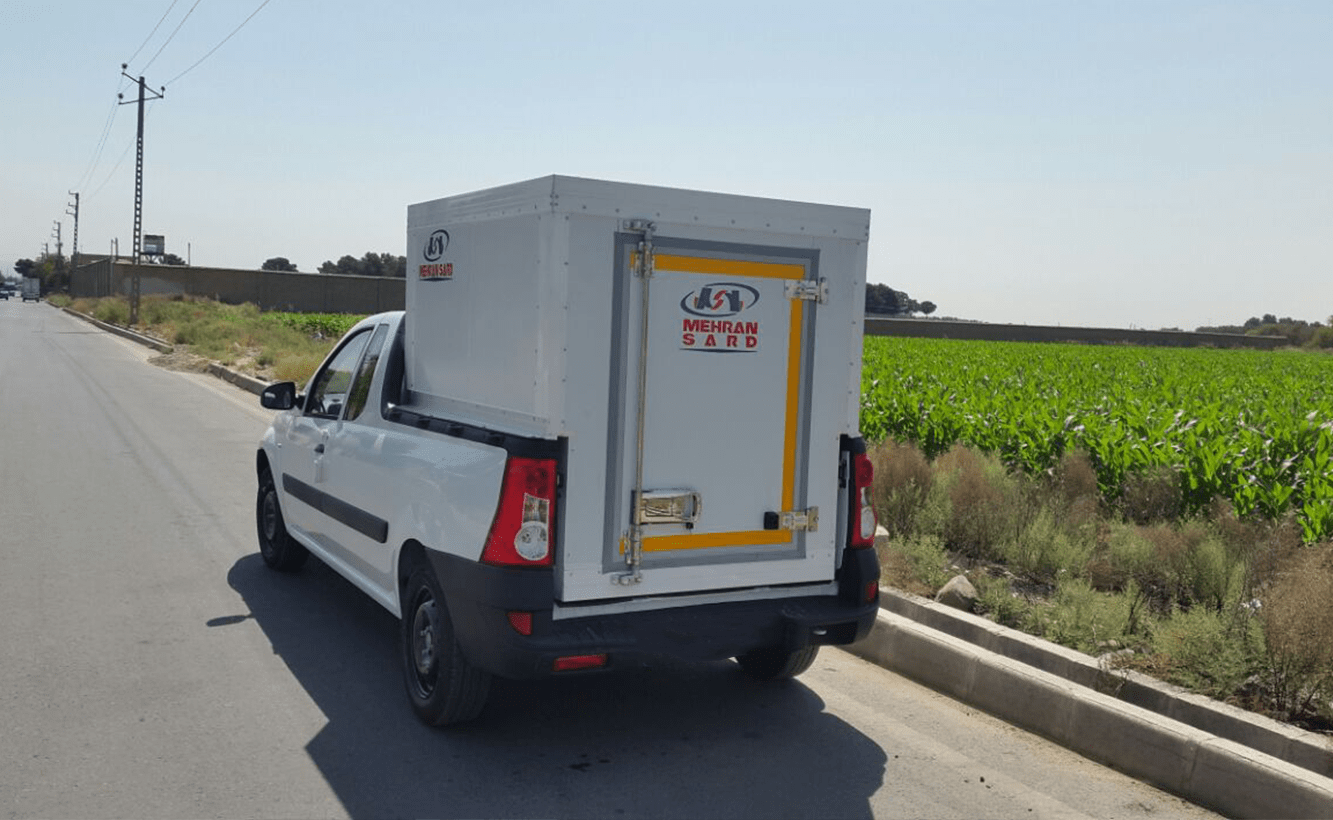

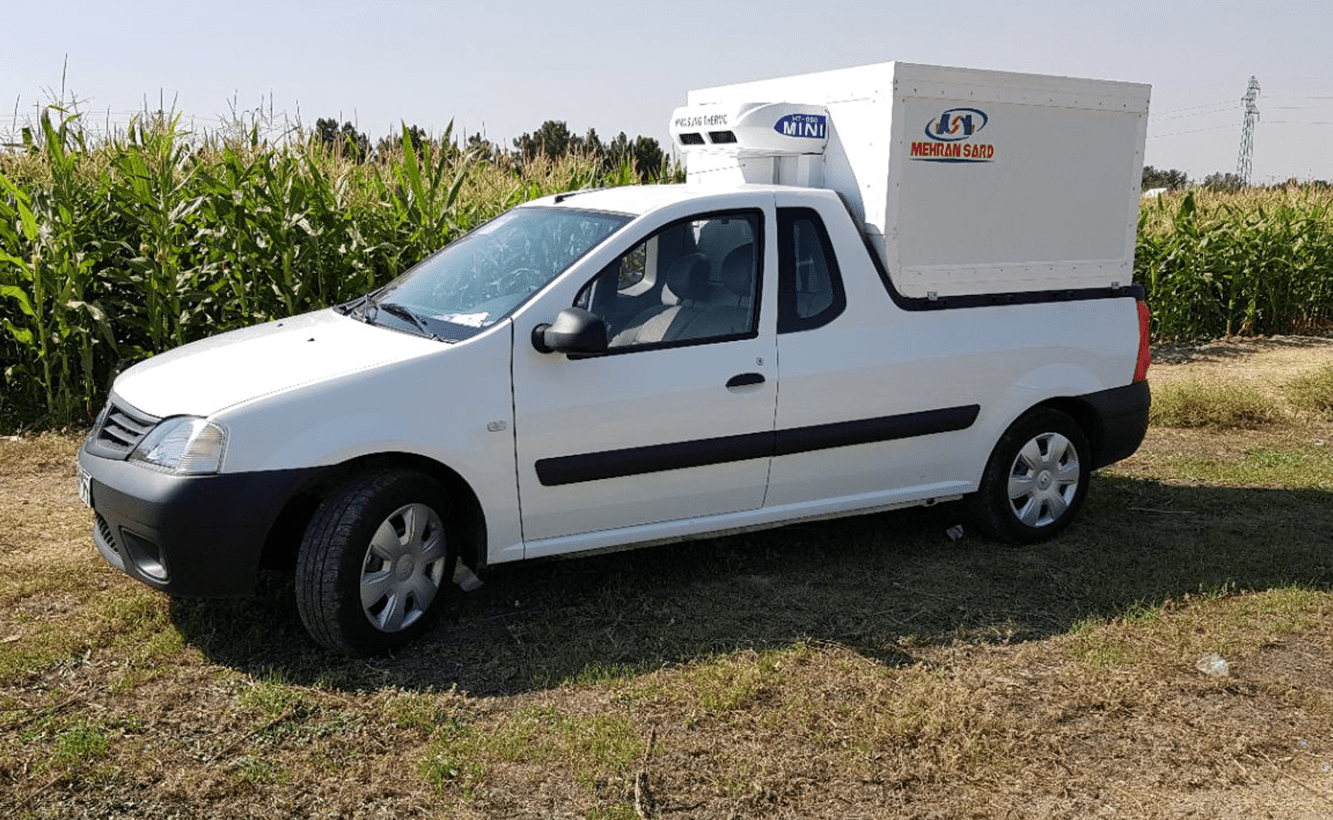

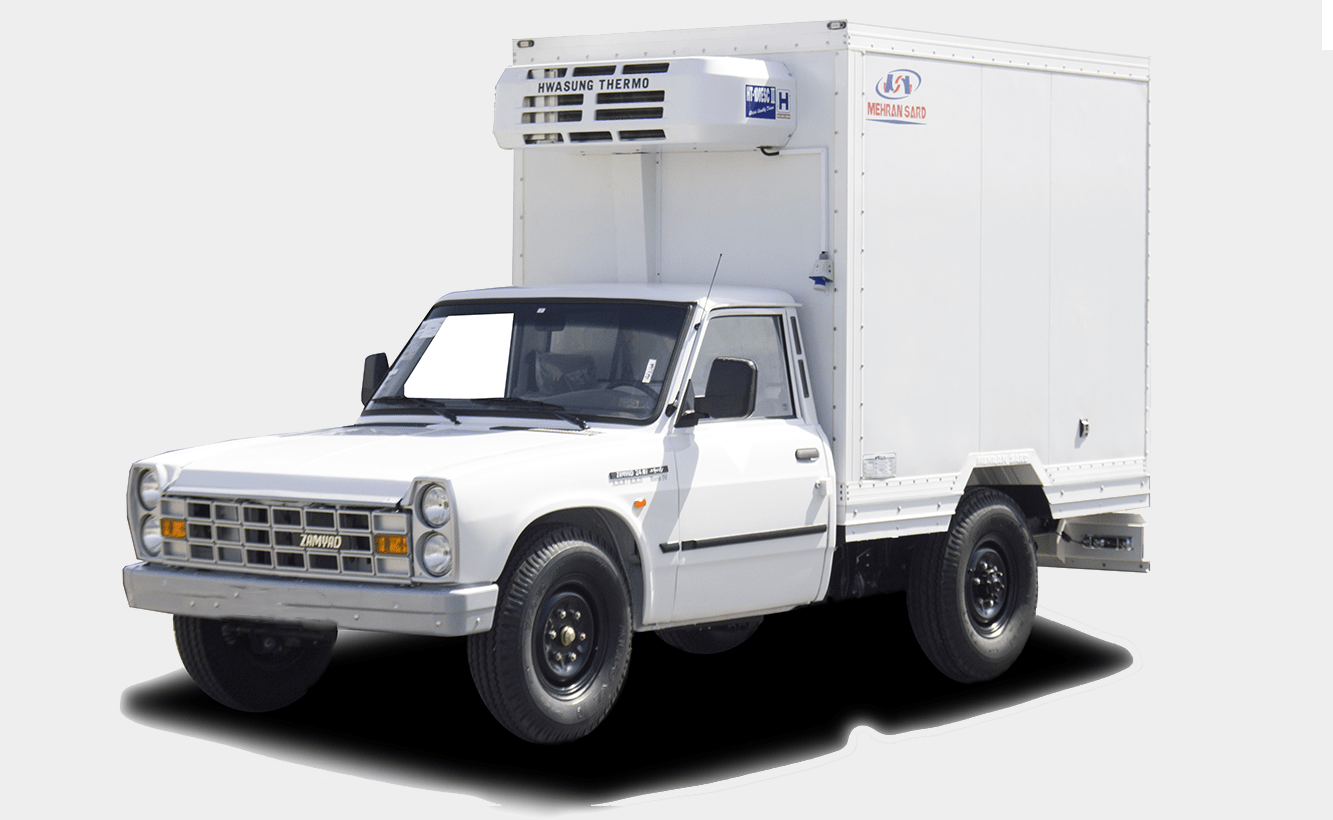

Small Refrigerated Truck body
- External and internal panel covering: pre-painted flat steel sheets in white color RAL9016 (coated with thickness of 7micron primer and 25micron final epoxy coat)
- Panel insulation is polyurethane rigid foam (density 40Kg/M3)
- Thickness 60 ~ 100 mm for side walls and roof and door
- Floor panel made by “T” aluminum profile
- Sub frame made from high tensile steel all welded construction, reinforced, painted with epoxy primer. All steel fabrication protected with anticorrosive preparation during assembly.
- Double wing door with mild steel frame, each door equipped with 2 galvanized steel hinges, galvanized external locking bar and complete with sealing PVC profiles.
- Seal inside and outside of box by PU adhesives.
- Bumper and fender
- Internal light
Options
- Stainless steel lock and hinges
- Floor surface by flat or checkered stainless steel
- Floor surface by checkered aluminum sheet
- Door frame made by stainless steel
- Fiber glass Side door 750mm * 1000mm
- Steel or stainless steel railing set for meat
- Change color of outside aluminum frame
- Change color of external surface of panels
- Small hatch
Small Refrigerated Truck body
Small Refrigerated Truck body
- External and internal panel covering: pre-painted flat steel sheets in white color RAL9016 (coated with thickness of 7micron primer and 25micron final epoxy coat)
- Panel insulation is polyurethane rigid foam (density 40Kg/M3)
- Thickness 60 ~ 100 mm for side walls and roof and door
- Floor panel made by “T” aluminum profile
- Sub frame made from high tensile steel all welded construction, reinforced, painted with epoxy primer. All steel fabrication protected with anticorrosive preparation during assembly.
- Double wing door with mild steel frame, each door equipped with 2 galvanized steel hinges, galvanized external locking bar and complete with sealing PVC profiles.
- Seal inside and outside of box by PU adhesives.
- Bumper and fender
- Internal light
Stainless steel lock and hinges
Floor surface by flat or checkered stainless steel
Floor surface by checkered aluminum sheet
Door frame made by stainless steel
Fiber glass Side door 750mm * 1000mm
Steel or stainless steel railing set for meat
Change color of outside aluminum frame
Change color of external surface of panels
Small hatch
