Specification

  • External and internal panel covering: pre-painted flat steel sheets in white color RAL9016 (coated with thickness of 7micron primer and 25micron final epoxy coat)
  • Panel insulation is polyurethane rigid foam (density 40Kg/M3)
  • Thickness 40 mm for side walls, roof and tail door
  • Floor panel made by checkered or flat steel
  • Inside and outside frame made by aluminum profiles
  • Sub frame made from high tensile steel all welded construction, reinforced, painted with epoxy primer. All steel fabrication protected with anticorrosive preparation during assembly.
  • Double wing door with mild steel frame, each door equipped with 3 stainless steel hinges, stainless steel external locking bar and complete with sealing PVC profiles.
  • Seal inside and outside of box by PU adhesives.
  • Bumper / fender / tool box
  • Internal light
Options
  • European made stainless steel lock and hinges
  • Floor surface by checkered aluminum sheet
  • Side door 900mm * 1600mm or other customized sizes
  • Change color of outside aluminum frame
  • Change color of external surface of panels
  • Insulated partition
  • Cargo holder

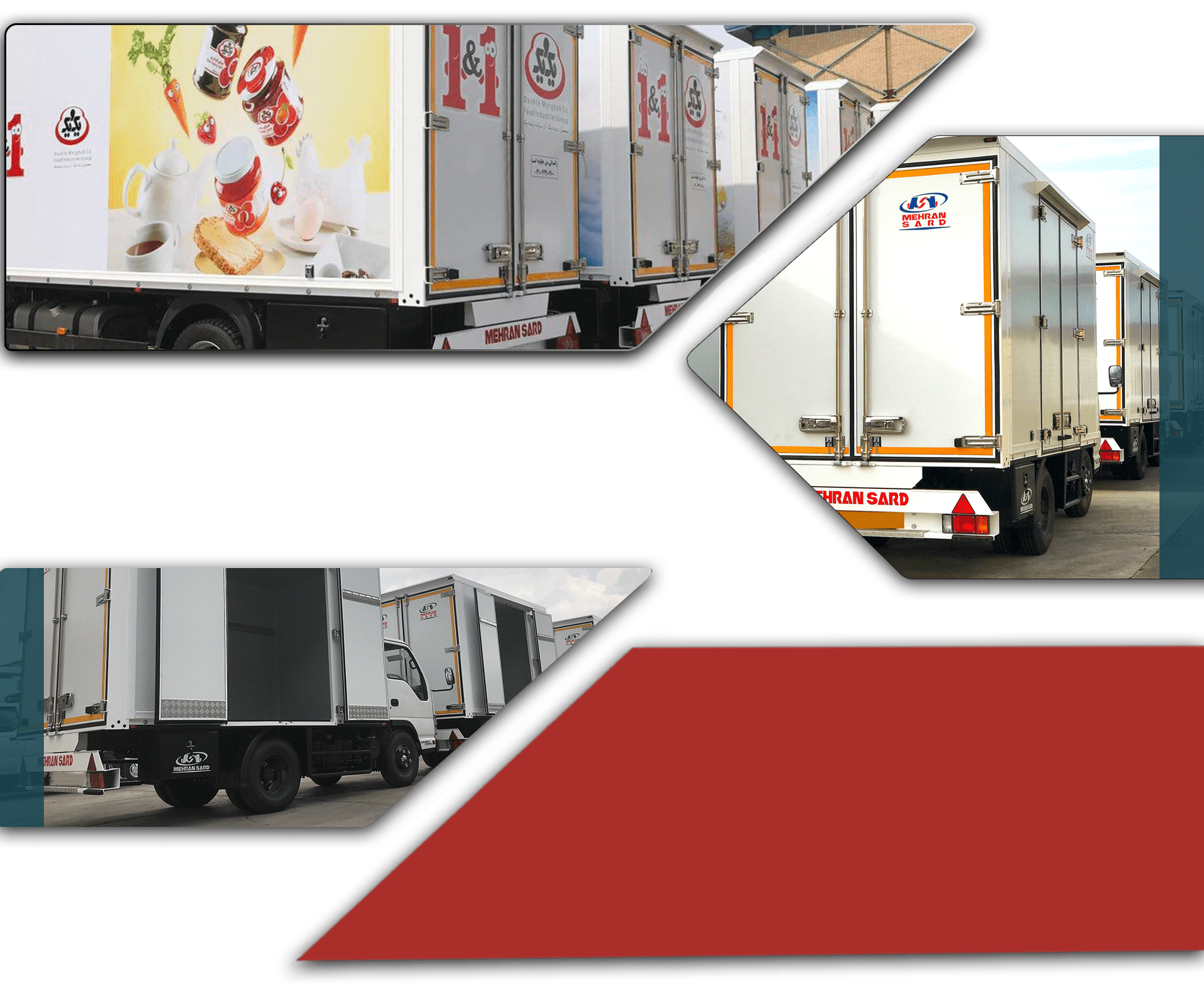

Insulated truck body


  • External and internal panel covering: pre-painted flat steel sheets in white color RAL9016 (coated with thickness of 7micron primer and 25micron final epoxy coat)
  • Panel insulation is polyurethane rigid foam (density 40Kg/M3)
  • Thickness 40 mm for side walls, roof and tail door
  • Floor panel made by checkered or flat steel
  • Inside and outside frame made by aluminum profiles
  • Sub frame made from high tensile steel all welded construction, reinforced, painted with epoxy primer. All steel fabrication protected with anticorrosive preparation during assembly.
  • Double wing door with mild steel frame, each door equipped with 3 stainless steel hinges, stainless steel external locking bar and complete with sealing PVC profiles.
  • Seal inside and outside of box by PU adhesives.
  • Bumper / fender / tool box
  • Internal light

Options:

  • European made stainless steel lock and hinges

  • Floor surface by checkered aluminum sheet

  • Side door 900mm * 1600mm or other customized sizes

  • Change color of outside aluminum frame

  • Change color of external surface of panels

  • Insulated partition

  • Cargo holder
